PEAK POWER

290
W

EFFICIENCY UP TO

17.42
%

MAXIMUM SYSTEM VOLTAGE

1000
V

WEIGHT

19.0
KG

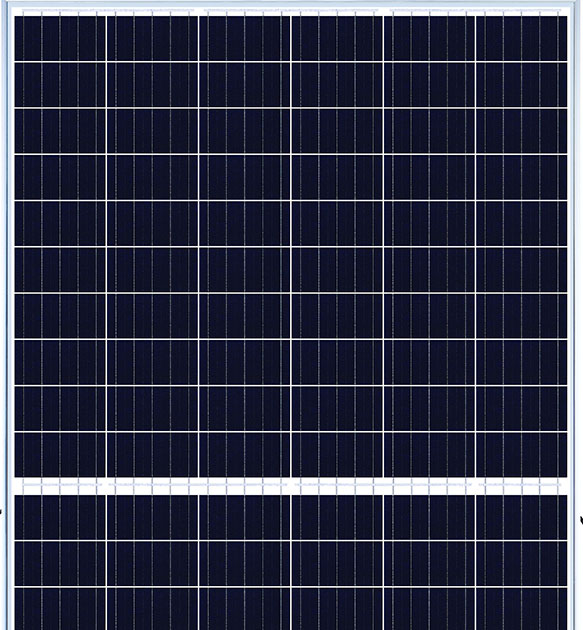

TSHP-120
275-290W

NOMINAL POWER

275-290Wp

WIND/SNOW LOAD

2400/5400Pa

DIMENSION

1680 x 991 x 35 mm

KEY FEATURES

Higher Module Efficiency

Brings 5-10W power gain due to half-cut production system

More Energy Yield

Lower NMOT and better temperature coefficient by lower Cell series resistance, helps boost energy yield

Lower Operating Temperature, More Reliable

Lower operating temperature and hot spot temperature during the sunny day, making the module prevail during the sunny days

Better Shading Tolerance

Thanks to Paralleling circuit design, more power generated under shading condition and during morning& evening time

Better Micro Crack Resistance

Minimize the impact by micro crack by limiting cell damage and potentially extending area by half-cut module architecture
