TSHM-120H

Trunsun High Efficiency Monocrystalline Half-cut Cell Solar Module with Perc Technonoly(1500V)

PEAK POWER

325
W

EFFICIENCY UP TO

19.52
%

MAXIMUM SYSTEM VOLTAGE

1500
V

WEIGHT

19.0
KG

TSHM-120H
305-325W

NOMINAL POWER

305-325Wp

WIND/SNOW LOAD

2400/5400Pa

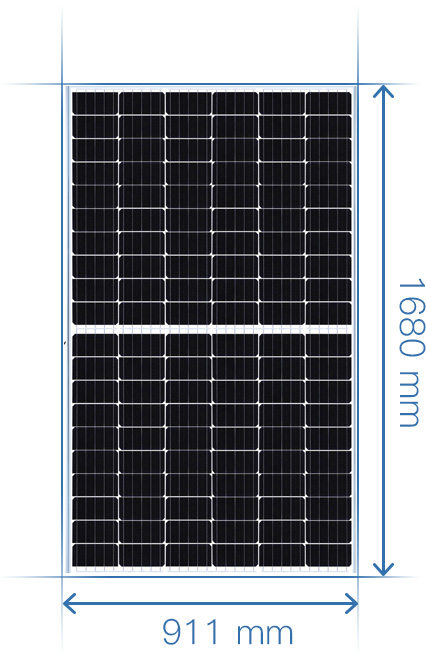

DIMENSION

1680 x 991 x 35 mm

KEY FEATURES

Higher Module Efficiency

Brings 5-10W power gain due to half-cut production system

More Energy Yield

Lower NMOT and better temperature coefficient by lower Cell series resistance, helps boost energy yield

Lower Operating Temperature, More Reliable

Lower operating temperature and hot spot temperature during the sunny day, making the module prevail during the sunny days

Better Shading Tolerance

Thanks to Paralleling circuit design, more power generated under shading condition and during morning& evening time

Better Micro Crack Resistance

Minimize the impact by micro crack by limiting cell damage and potentially extending area by half-cut module architecture

1500V System Voltage

Approved IEC1500Vdc system voltage, saving on BoS cost
